Mphindi. Dongosolo:1 Piece/Pieces

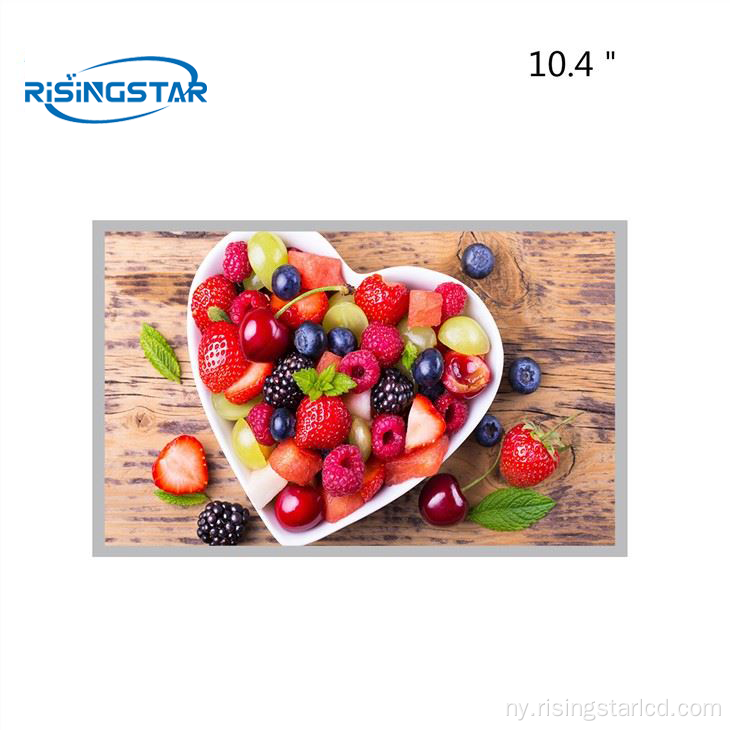

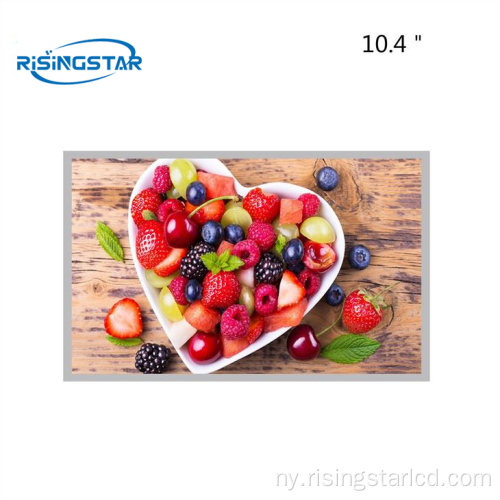

Chitsanzo Cha: BA104S01-100
Ba104s01-100 ndi gawo la 10.4-inch LCD yomwe idakhazikitsidwa ndi bungwe la Boe Technology Guology Co., LTD. (Boe) Kugwiritsa ntchito ukadaulo wa A-si tf-lcd. Ili ndi chindapusa cha Dright, palibe kuwongolera madikoni ndipo osakhudza. Ba104s01-100 ikuwonetsa lingaliro la 800 (RGB) × 600 (SVGA) .1 Kutulutsidwa ndi Boe pa Disembala 12, 2014. Kukula kwake kwa 211.2 × 9.4 × 5.9 (makulidwe) mm, chithandizo chapamwamba ndi chomveka, kulemera kwa intaneti ndi 288g.). Chidule Chogulitsachi chimagwiritsa ntchito gwero la gawo la 6s6p lolowera (pamwamba), moyo wa Kuwala ndi maola 50k, palibe ma drive drive. Ba104s01-100 amatengera ma LVD (1 Ch, 6/8-bit) mawonekedwe, ma pion okwana 20, amatengera kulumikizana kwa magetsi, magetsi. Kutsitsimula kwake kokhazikika kwa FV ndi 60hz. Imagwira ntchito pa -20 ° C mpaka 70 ° C ndi masitolo a ku -30 ° C mpaka 80 ° C. Mtundu uwu ndi womwe umalimbikitsidwa kuti mugwiritse ntchito m'magulu a mafakitale ndi chamankhwala chifukwa cha maola ake onenepa, oposa 50,000, mabatani 6/8 a posankha imvi, komanso zinthu zina.
| brand | BOE | Model name | BA104S01-100 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 800(RGB)×600 [SVGA] 96PPI | Pixel configuration | RGB vertical bar |
| Display Area | 211.2×158.4 mm (H×V) | Surface treatment | Clear |
| Visual size | 215.0×162.0 mm (H×V) | Contrast Ratio | 800:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 236×176.9×5.9 mm (H×V×D) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
Otsatirawa ndi mitundu yofanana ndi magawo
| brand | BOE | Model name | AV104X0M-N10 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 (XGA) 123PPI | Pixel configuration | RGB vertical bar |
| Display Area | 210.4 × 157.8 (H×V) mm | Surface treatment | / |
| Visual size | 215.4 × 161.8 (H×V) mm | Contrast Ratio | 1100:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600cd/m²(Typ.)or customized | Outline dimension | 230 × 180.2(H×V) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -40 to 95 °C Operation Temperature: -30 to 85 °C |
| brand | BOE | Model name | TDA104-001V02 |
| size | 10.4 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 (XGA) 123PPI | Pixel configuration | RGB vertical bar |
| Display Area | 210.4 × 157.8 (H×V) mm | Surface treatment | / |
| Visual size | / | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Brightness(cd/m²) | 900cd/m²(Typ.)or customized | Outline dimension | 235×173×10.5mm(H×V×D) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -55 to 85 °C Operation Temperature: -40 to 80 °C |
Ma tag otentha: Boe Ba104s01-100 Kuwala 500NIT TF-lcd Screen, Script, FD Screes, 19inch LCD, LCD Screen ya Kunja , LCD Panel, LCD module, kuwonekera kowoneka bwino.
