Mphindi. Dongosolo:1 Piece/Pieces

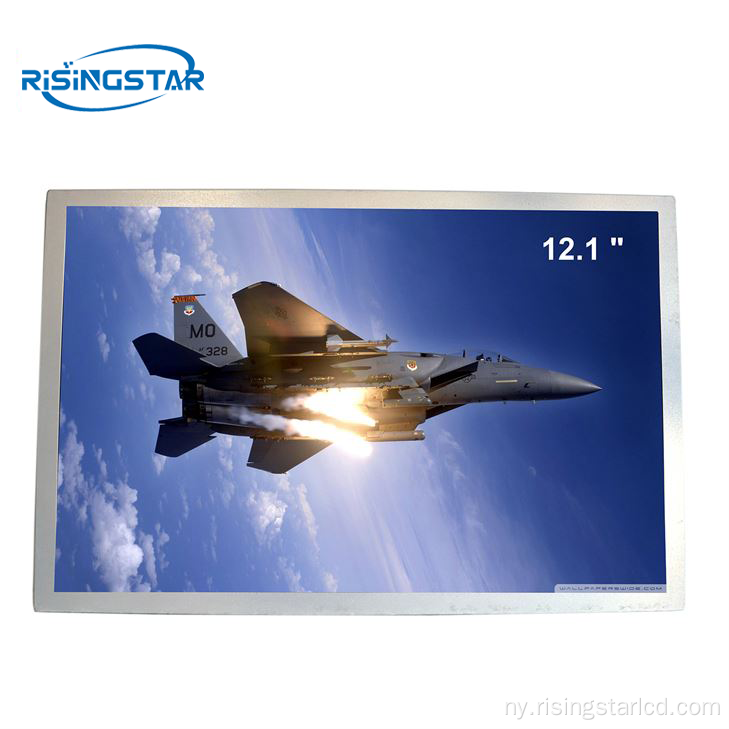

12.1 "Boe Enc121x0m-N10 Kuwala kwa 500NITS SANDITSITSITSE CHITSANZO CHA LCD.
| brand | BOE | Model name | EV121X0M-N10 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×768 XGA 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 245.76×184.32mm(H×V) | Surface treatment | / |
| Visual size | 249 × 187.5 mm (H×V) | Contrast Ratio | 1200:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500 cd/m² (Typ.)or customized | Outline dimension | 249(H)×187.5(V) mm |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
|
|
| Signal interface | 20 pins LVDS (1 ch, 8-bit) ,terminal |
|
|
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
|
|
Ma tags otentha: 12.1 "Boe Enc121x0m-N10 LCD Speric, 15 Ma module a LCD, 1500 Nits zojambula za digito , LCD Panel, LCD module, kuwonekera kowoneka bwino.
