Mphindi. Dongosolo:1 Piece/Pieces
Chitsanzo Cha: DJ123IA-01B

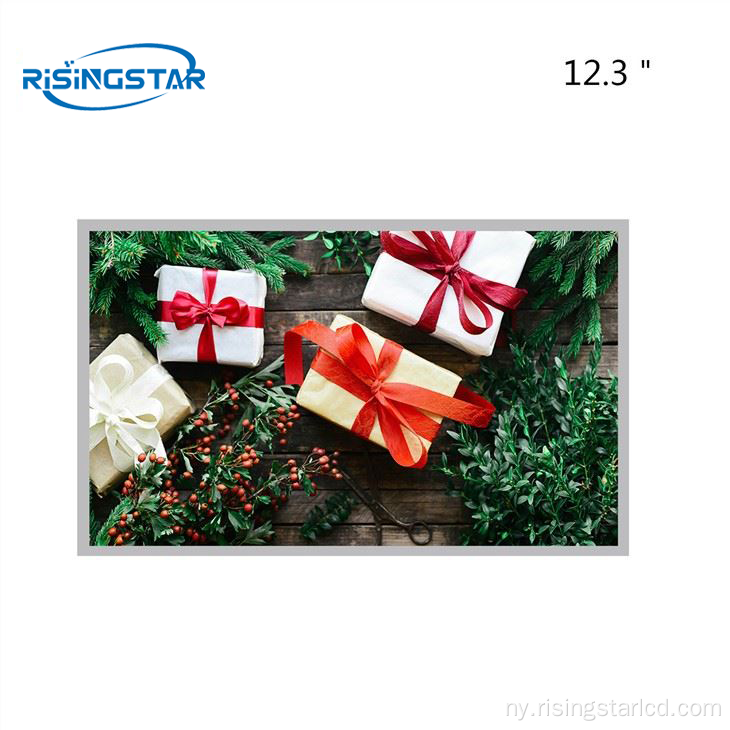

12.3 Inchi Innolux Dj123a-01b chowala kwambiri 750nits TFT LCD Pannel Shown wowoneka.
1. Kuwala kwa mapangidwe a Syptenectofic System System.
2.Adopt omwe adatumiza nyali yomwe ili ndi mphamvu yotsika, yokwanira kwambiri, komanso kugwiritsa ntchito mphamvu zochepa.
3.Kuyendetsa driver amayendetsa ndi vol volnige pafupipafupi, otetezeka komanso odalirika.
Chithunzi chofanana: JJ103a-12a, JJ123a-01J
| brand | Innolux | Model name | DJ123IA-01B |
| size | 12.3 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×720, 166PPI | Pixel configuration | RGB vertical bar |
| Display Area | 292.608×109.728(H×V)mm | Surface treatment | / |
| Brightness(cd/m²) | 750 cd/m² (Typ.)or customized | Contrast Ratio | 1000:1 (Typ.) [transmission] |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Outline dimension | 310×129.1×15.5mm(H×V×D) |
| Signal interface | LVDS (2 ch, 8-bit) , 50 pins ,terminal |
|
|
| work environment | Storage temperature: -40 ~ 90 °C Working temperature: -30 ~ 85 °C |
|
|
Ma Tags otentha: 12.3 "Inndolux Dj123a-01b LCD IMS Screen Screen, kuwala kwa dzuwa kuwerengetsa kwa LCD , LCD Panel, LCD module, kuwonekera kowoneka bwino.
10.3 "Intolux Dj103a-03B LCD
10.1 "Inndolux NJ101a-01s LCD module
