Mphindi. Dongosolo:1 Piece/Pieces
Size: 10.1 inch
Brightness: 1000 nits
Contrast Ratio: 1000:1
Resolution: 1280*800
Operating Temperature: -10 - 50°C
Kukula kang'onong'ono komwe kumaphatikizidwa kunja kwapakunja, 10.1 inchi TFT 1000 NATS LCD polojekiti. Zomwe zimawonetsedwa pazenera zitha kuwonedwa bwino m'chilengedwe chowoneka bwino, itha kugwiritsidwa ntchito ndi mitundu yonse ya miyala, makina odzigulitsa okha, kaopulo ndi ma seva ena.
Ngati muli ndi zosowa zina, chonde titumizireni, tisintha njira yankho labwino kwambiri lowonetsera molingana ndi zosowa zanu.

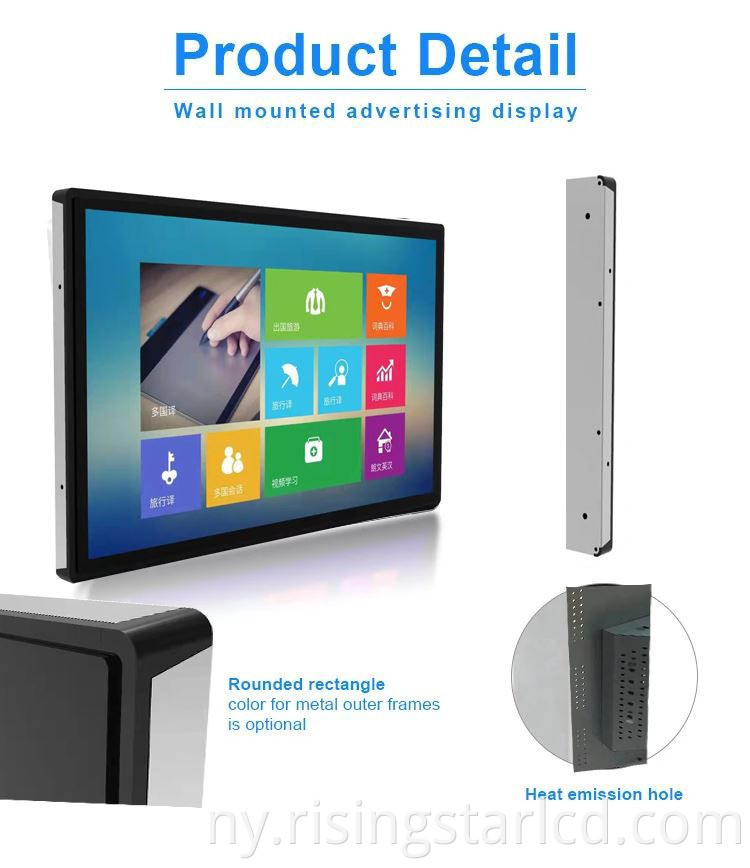

Wophatikizidwa panja umawonetsa mawonekedwe a malonda
10.1 "TFF LCD
1280 * 800 kuthetsa
Kunja kogwiritsidwa ntchito, kunyezimira kochokera kwa 500nits mpaka 1500 ndi posankha
Gulu Lalikulu Lapamwamba, lokutidwa ndi 2mgalasi Lokhazikika komanso lodalirika la Vandal Umboni
VGA HDMI DVI IMV
Kuchita masewera olimbitsa thupi kwambiri, 7/24 Kugwira Ntchito
Thandizani magetsi a 12-24V
Ultra-woonda wakutsogolo 3mm, wabwino kwambiri wophatikizidwa
Chithunzi cha Panel IP55 FAFT Pumbi
Kutentha Kwambiri: -10 - 50 ° C
|
Product specification |
|
|
LCD panel |
|
|
Panel size |
10.1" |
|
Resolution |
1280*800 or 1024*600 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits (can be customized) |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows ,HDMI, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12-24V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black, Silver or customized |
|
VESA mounting |
75x75mm/100x100mm |
|
IP grade |
Front panel IP55 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 50°C, storage: -20 to 80°C |
|
Relative humidity |
operating: -5% to 95%, storage: -5% to 95% |
|
Packing Details |
|
|
Gross weight |
about 4kg |
|
Accessories |
Power adapter, VGA cable, USB touch cable, embedded screws |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, 3C, RoHS |
